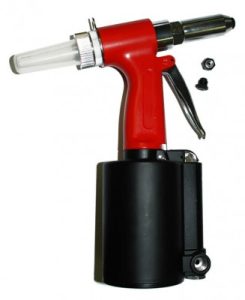

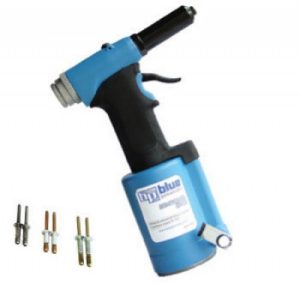

Pneumatic Riveter with Custom Machined Heads for use with Zenair blind rivets, sold separately
ZENAIR Riveting System
ZENAIR blind (or pulled) rivets have been used to construct the all-metal Chris Heintz designs since the 1970s, and make riveting a quick and easy process! The ZENAIR riveting system forms the rivet head as the blind rivet is pulled, providing a low profile dome finish and high shear strength. Fast installation, simple tools and low cost make this a popular riveting system with homebuilders!
Note: The riveter is supplied with the custom machined heads, required for the Zenair blind rivets, for use with Zenair blind rivets, sold separately.
The BP-4V riveter is a combination of all the most useful features. The BP-4V riveting tool has the best weight to power ratio in the industry, boasting 3500lbs of pulling force.
It can set 1/8,5/32, 3/16 and 1/4 rivets in all Alloys, including Monobolt and Magna-lok structural rivets, most in one stroke.The BP-4V Rivet Gun is super light weight, allowing the rivet gun to be operated continually with great comfort. The rivet tool is expertly designed too. Look no further for the best in ergonomics, balance and comfort. This tool has a convenient, thumb-operated on/off vaccum control switch to control compressor air consumption while it holds the rivet in place in the nose tip. Rivet tool comes complete with nose tips for 1/8, 5/32, 3/16 and 1/4. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 80-95psi. Weight 3.6 lbs.
Meet the new generation of riveting tools. The BP-3V riveter is a combination of all the most useful features. The BP-3V riveting tool has the best weight to power ratio in the industry, boasting 2100lbs of pulling force. |
This pop rivets gun is like our heavy duty riveter, Big Blue, but without the steroids. Big Blue Junior has the power of the large “heavy duty” riveters in the body of a small one. This tool simply has more pulling force than other tools in its weight class. This is our “full range riveter”.
This pop rivets gun tool sets 3/32, 1/8, 5/32 and 3/16 rivets in all materials. Big blue Jr. is ideal for multi-grip rivets and pulls 3/16 Monobolt/Magna-lok structural rivets. This tool provides an economical light-weight solution to placing a wide range of rivets. Nose pieces and service wrenches are included. Recommended operating air pressure is 85-100 psi. Weight 4 lbs.
This one is loaded with pulling force at 3800lbs. This is a heavy duty air/hydraulic riveter. Big Blue sets rivets from 1/8 through 1/4 in all materials and is ideal for Monobolt/Magna-lok and other structural rivets. Its 7/8 stroke allows this rivet tool to pull most structural rivets in one stroke. More power and a forged aluminum cylinder means long life. Big Blue is built to last and last. Great for high production applications.
Rivet tool comes with nose pieces including 1/8, 5/32, 3/16 and 1/4. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 85-100 psi. Weight 5 lbs.

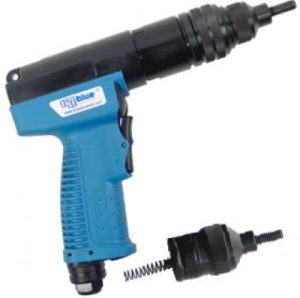

Now with new swiveling air inlet and ergonomic composite handle. BP-600Qc Rivet Nut tool offers the same features as the BP-350Qc. This model operates at 800 rpm for quick installations of smaller rivet nuts. Places 8-32, 10-24, 1/4-20 and M4, M5, and M6 rivet nuts. Recommended operating air pressure is 85-110 psi. Weight 2.8 lbs.
Part includes nose assembly, make selection at time of order.
Nose assembly sizes: 6-32, 8-32, 10-24, 1/4-20, 3/8-16

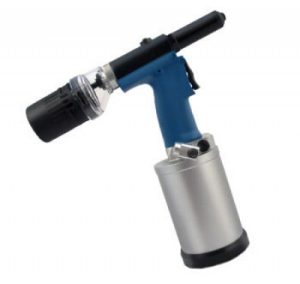

This rivet nut tool features a SPIN-PULL-SPIN setting sequence. In one touch the fastener quickly spins on, pulls the fastener, and with the release button, spins out of the fastener. Setting cycle is about 2 seconds. This means less thread deformation. The BP-60 Rivet Nut tool has a fully adjustable stroke for accurate insert placements, which requires less operator skill. Stroke adjustment is quick and easy, and is done from exterior of the riv nut tool. Mandrels are included with tool. Comes complete with sizes 8-32 through 1/2-13 or M4 through M12. "More Power" means this tool uses its huge 6800 lbs. of pulling force to set up to 1/2 (M12) steel rivet nuts with ease. Recommended operating air pressure is 80-100psi. Weight 6 lbs.The BP-60 Empowers everyone. It offers benefits that suit the distributor and the end user. Blue pneumatic has successfully developed a product that is affordable, durable and beautifully designed. Most importantly, offers the smoothest and most effortless operation.

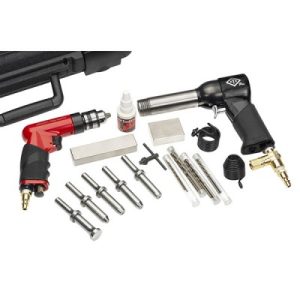

The ATS Pro Field Kit features the line tools. In it you get the best-selling Palm Drill (featuring a true variable speed trigger from 0 to 2600 RPM), plus an assortment of cobalt drill bits in the 4 most commonly use sizes (#40, #30, #21, and #12).
For perfect riveting jobs, ATS gives you the top of the line Pro Rivet Gun with feather trigger (including springs), two of the most popular Tungsten bucking bars, and a full set of riveting snaps. ATS has even thrown in a set of rivet gauges to make sure you get things right, and a bottle of oil to keep those tools running at peak performance.
It all comes to you in a quality shadow-foamed hard tool case, making this the kit you will want to show off!
The ATS Pro Field Kit features top of the line tools. In it you get the best-selling Palm Drill (featuring a true variable speed trigger from 0 to 2600 RPM), plus an assortment of cobalt drill bits in the 4 most commonly use sizes (#40, #30, #21, and #11).
For perfect riveting jobs, ATS gives you the ATS Pro Rivet Gun with feather trigger (including springs), two of ATS most popular Tungsten bucking bars, and a full set of riveting snaps. Included is a set of rivet gauges to make sure you get things right, and a bottle of oil to keep those tools running at peak performance.
It all comes to with a quality shadow-foamed hard tool case, making this the kit you will want to show off!
The ATS Pro Field Kit features top of the line tools. In it you get the best-selling Palm Drill (featuring a true variable speed trigger from 0 to 2600 RPM), plus an assortment of cobalt drill bits in the 4 most commonly use sizes (#40, #30, #21, and #11).
For perfect riveting jobs, ATS gives you the ATS Pro Rivet Gun with feather trigger (including springs), two of ATS most popular Tungsten bucking bars, and a full set of riveting snaps. Included is a set of rivet gauges to make sure you get things right, and a bottle of oil to keep those tools running at peak performance.
It all comes to with a quality shadow-foamed hard tool case, making this the kit you will want to show off!
With this popular 2602 Rivet Gun, it's now much lighter and features parts that are interchangeable with Chicago Pneumatic X-Guns. Of course, it still has the same great control that has made our 2602 gun so popular. Excellent teasing throttle for slow starts (so that you don't work harden the rivet before it is set), and enough power to drive 3/16" aluminum (1/8" steel) rivets. This gun is so controllable you can properly buck rivets as small as 3/32" or as large as 3/16". This tool is recommended by many of the kit manufacturers such as the RV-4, Thorp T-18, and the Midget Mustang. 0-2600 BPM, 3CFM required at 90 psi, .401 shank. 4lbs shipping weight.

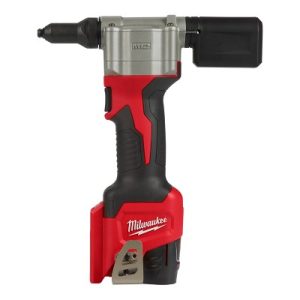

The M12™ Rivet Tool is the first cordless solution that delivers fast, easy riveting while maintaining performance, durability, and size. The 2550 can pull up to 250 3/16" stainless steel rivets or 450 1/8" steel rivets on one charge with a 1.5ah battery, and reduces muscle effort from a hand tool by 60%.
- Pull Up to 3/16" Stainless Steel Rivets
- 450 1/8" Steel Rivets per charge
- Part of 90+ Solutions on the M12 Platform
- Pull 3/32", 1/8", 5/32", 3/16" Rivets
- Aluminum, Steel, Stainless Steel - Capacity
- 0.8" Stroke Length
- 2,000 lbs. pulls force

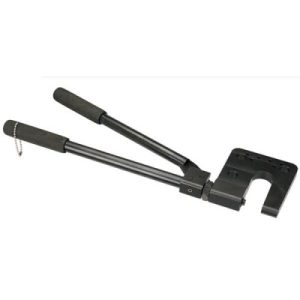

This is a heavy duty design that will hold up to even the most brutal punishment. The handles are formed from .060" thick cold-rolled steel tubing that resists bending, even under heavy pressure.
- 1-1/2" Reach
- 1-1/4" gap height
- 3/16" aluminum rivet capacity
- 360 degree swivel head locks yoke in any position for greater versatility. 5/8" adjustable ram eliminates the need for shims.
- Longer handles for better leverage.
- 3/16" aluminum (5/32" steel) rivet capacity.
- 21" overall length.

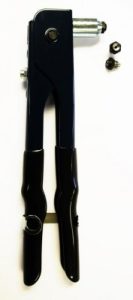

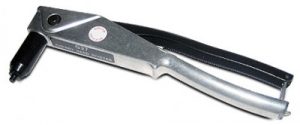

Hand Riveter with Custom Machined Heads. Riveter Heads (changeable Nose Bushing piece).
ZENAIR Riveting System
ZENAIR blind (or pulled) rivets have been used to construct the all-metal Chris Heintz designs since the 1970s, and make riveting a quick and easy process! The ZENAIR riveting system forms the rivet head as the blind rivet is pulled, providing a low profile dome finish and high shear strength. Fast installation, simple tools and low cost make this a popular riveting system with homebuilders!
Note: The riveter is supplied with the custom machined heads, required for the Zenair blind rivets ((for use with Zenair blind rivets, sold separately)
The Cherry® G-27 Hand Riveter is designed specifically for the most efficient installation of 1/8" Cherry®MAX Rivets. The G-27 Riveter is intended for use where access or power limitation prevents the use of Cherry® pneumatic power tools. Overall length of the G-27 is 9-1/4", the net weight is just 13 ounces and the pulling head is an integral part of the tool.
The G27 hand riveter is designed specifically for manual installation of 1/8" CherryMax® rivets. This tool is intended for use where access or power limitation prevents the use of pneumatic power tools. Equipped with a 728A9-4 nosepiece. Replacement jaws available (PN:62910).
- Length: 9 1/4"
- Weight: 13 ozs
